Alpha Series™ Electro-Galvanized Steel, Tube Size
Alpha Series™ Electro-Galvanized Steel, Tube Size
Description

Designed for the tough jobs, the Alpha Series™ U-Bolt standard electro-galvanized steel assembly secures pipe runs to any flat surface. The cushion design provides total load distribution, allowing the U-Bolt to become a full contact hanger, eliminating knife-edge loading. The U-Bolt traps and secures the cushion in place to prevent lateral movement, while nylon insserts locknuts provide a positive lock.

Features
  • Alpha Series™ U-Bolt Assembly conforms to MIL-S-901D for shock testing.
  • Standard temp ranges from -50° F to 275° F (-45° C to 135° C)
  • Prevents lateral movement
  • Eliminates knife-edge loading

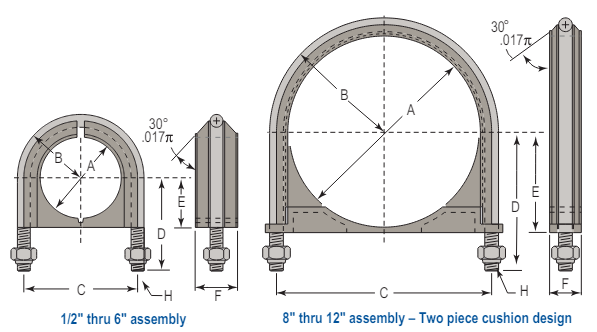

Dimensional Image
PART#
QTY
PRICE
No
$16.60
No
$17.80
No
$18.00
No
$18.00
No
$74.90
No
$53.70
No
$35.90
No
$22.10
