    Spring Steel BCC V Beam Clamp with Conduit Clip, Vertical Mount
    Spring Steel BCC V Beam Clamp with Conduit Clip, Vertical Mount
    Description

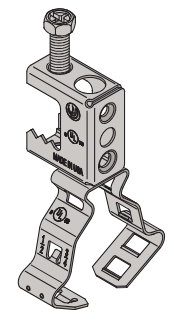

    The Spring Steel vertical BCC Beam Clamp with Conduit Clip eliminates offset bending of conduit.

    Features
    • Eliminates offset bending of conduit
    • For installation on 1⁄2" maximum flanges
    • Included combo head screw allows Robertson, Phillips/Slotted and Hex drivers
    • Conduit clip rotates 360 degrees
    • For support of conduit per NEC 344.30(B)
    • Material: Spring Steel
    • Finish: Silva-Guard

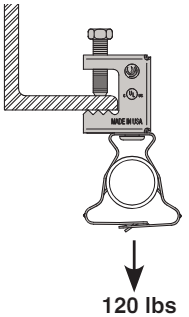

    Installation
    PART#
    Box Qty
    Conduit Size
    QTY
    PRICE
    BCC812VM
    50
    ⁄ 2" & 3 ⁄4" EMT, Rigid
    Yes
    50
    $4.20 /per piece
    BCC16VM
    50
    1" EMT, Rigid
    Yes
    50
    $4.50 /per piece
    BCC20CM
    50
    1-1 ⁄4" EMT, Rigid
    Yes
    50
    $5.10 /per piece
    BCC24VM
    50
    1-1 ⁄ 2" EMT, Rigid
    Yes
    50
    $5.10 /per piece
    BCC32VM
    50
    2" EMT, Rigid
    Yes
    50
    $5.20 /per piece
    GRAND TOTAL: $0
    PART#
    QTY
    PRICE
    BCC812VM
    Yes
    50
    $4.20 /per piece
    BCC16VM
    Yes
    50
    $4.50 /per piece
    BCC20CM
    Yes
    50
    $5.10 /per piece
    BCC24VM
    Yes
    50
    $5.10 /per piece
    BCC32VM
    Yes
    50
    $5.20 /per piece
