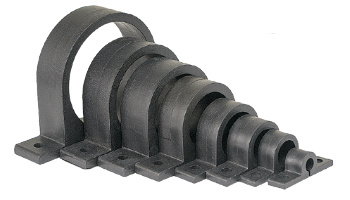

    Cush-A-Glide™ Tight Fitting, Flexible Clamps
    Cush-A-Glide™ Tight Fitting, Flexible Clamps
    Description

    Cush-A-Glide™is designed for fast installation of copper tube or pipe, and can be easily installed in seconds with fasteners of your choice. Just spread the clamp apart placing it over the top of a tube or pipe and fasten one side. Push in the opposite side to the desired tightness, allowing for expansion and contraction, then fasten the other side.

    Features
    • Allows for expansion and contraction of copper tube and pipe
    • Excellent alternative to stainless or galvanized clamps
    • Fits tightly and securely against mounting surfaces
    • Made from trusted high quality TPE material
    • One piece molded split ring design
    • Suitable for indoor or outdoor applications
    • Temperature range of -50° F to 275° F (-45V C to 135V C)
    • Will not rust and prevents and eliminates galvanic corrosion
    • Made in the USA

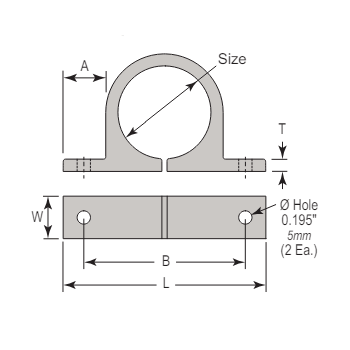

    Dimensional Image
    Installation
    Step 1: Spread open Cush-a-Glide, and place it over tube, pipe, or hose Step 2: Secure one side of Cush-a-Glide with a fastener of your choice> Step 3: Simply glide tube or pipe through the Cush-a-Glide to desired position Step 4: Fasten second side of the Cush-a-Glide
    PART#
    "A"
    "B"
    "L"
    "T"
    "W"
    O.D.
    Tube Size
    QTY
    PRICE
    CAGB04
    0.500" (13mm)
    1.000" (25mm)
    1.465" (37mm)
    0.110" (3mm)
    0.375" (10mm)
    0.245
    1/4"
    No
    $0.80
    CAGB06
    0.500" (13mm)
    1.125" (29mm)
    1.590" (40mm)
    0.110" (3mm)
    0.375" (10mm)
    0.37
    3/8"
    No
    $0.90
    CAGB08
    0.500" (13mm)
    1.250" (32mm)
    1.715" (44mm)
    0.110" (3mm)
    0.375" (10mm)
    0.495
    1/2"
    No
    $0.90
    CAGB10
    0.563" (14mm)
    1.500" (38mm)
    2.045" (52mm)
    0.150" (4mm)
    0.500" (13mm)
    0.62
    5/8"
    No
    $0.90
    CAGB14
    0.563" (14mm)
    1.750" (44mm)
    2.295" (58mm)
    0.150" (4mm)
    0.500" (13mm)
    0.87
    3/4"
    No
    $1.00
    CAGB18
    0.625" (16mm)
    2.125" (54mm)
    2.730" (69mm)
    0.180" (5mm)
    0.625" (16mm)
    1.12
    1-1/8"
    No
    $1.00
    CAGB22
    0.625" (16mm)
    2.375" (60mm)
    2.980" (76mm)
    0.180" (5mm)
    0.625" (16mm)
    1.37
    1-3/8"
    No
    $1.10
    CAGB26
    0.625" (16mm)
    2.625" (67mm)
    3.230" (82mm)
    0.180" (5mm)
    0.750" (19mm)
    1.62
    1-5/8"
    No
    $1.20
    CAGB34
    0.625" (16mm)
    3.125" (79mm)
    3.730" (95mm)
    0.180" (5mm)
    0.750" (19mm)
    2.12
    2-1/8"
    No
    $1.40
    GRAND TOTAL: $0
    PART#
    QTY
    PRICE
    CAGB04
    No
    $0.80
    CAGB06
    No
    $0.90
    CAGB08
    No
    $0.90
    CAGB10
    No
    $0.90
    CAGB14
    No
    $1.00
    CAGB18
    No
    $1.00
    CAGB22
    No
    $1.10
    CAGB26
    No
    $1.20
    CAGB34
    No
    $1.40
