    Cush-A-Grip® Bolt-Close Clamps
    Cush-A-Grip® Bolt-Close Clamps
    Description

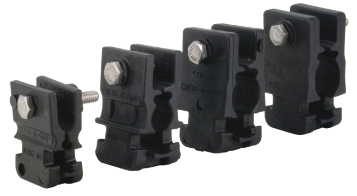

    Cush-A-Grip® clamps work with screw or nut drivers, resist vibration and lower overall inventory costs. Use in place of steel clamps with steel tube. Cush-A-Grip® clamps cover a wide range of applications and mantains thermal barrier. Use in place of stainless, aluminum, PVC or hot dipped galvanized clamps and for copper tubing.

    Features

    Features

    • Ten sizes of tube, five sizes of pipe
    • Diameters from .25" to 1.31"

    Advantages

    • Reduces inventory SKU’s
    • Simplifies take-offs and requirements on projects using both tube and pipe sizes
    • Easy installation, non-conducting
    • Permissible outdoors
    • Temp. range: -40˚F to +380˚F (-40°C to 193°C)
    • No galvanic reaction, Will not rust

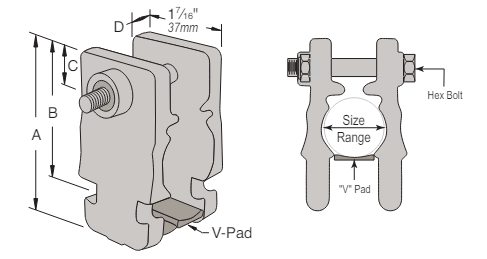

    Dimensional Image
    PART#
    "A"
    "B"
    "C"
    "D"
    Bolt Size
    Pipe Size
    Tube Size
    QTY
    PRICE
    CG-10
    1-15/16" (49mm)
    1-38/" (35mm)
    3/8" (10mm)
    3/16" (5mm)
    1/4-20 x 1-1/2"
    1/4"
    1/4", 3/8", 1/2"
    No
    $4.00
    CG-20
    2-3/8" (60mm)
    1-5/8" (41mm)
    7/16" (11mm)
    1/4" (6mm)
    1/4-20 x 2"
    3/8"
    5/8", 3/4", 7/8"
    No
    $4.90
    CG-30
    2-9/16" (65mm)
    1-13/16" (46mm)
    7/16" (11mm)
    5/16" (8mm)
    1/4-20 x 2"
    1/2"
    7/8", 1", 1-1/8"
    No
    $5.80
    CG-40
    2-11/16" (68mm)
    1-15/16" (49mm)
    7/16" (11mm)
    5/16" (8mm)
    1/4-20 x 2"
    3/4"
    1", 1-1/8", 1-1/4"
    No
    $6.30
    GRAND TOTAL: $0
    PART#
    QTY
    PRICE
    CG-10
    No
    $4.00
    CG-20
    No
    $4.90
    CG-30
    No
    $5.80
    CG-40
    No
    $6.30
