Snap-A-Saddle Pro Multi™ Adaptable Insulated Pipe Saddle
Snap-A-Saddle Pro Multi™ Adaptable Insulated Pipe Saddle
Description

The Snap-A-Saddle Pro Multi™ adaptable insulated pipe saddles are suitable for plumbing, mechanical, refrigeration, and air conditioning applications.

Features
Material:
  • Polypropylene 20% glass filled
  • UV resistant
  • Operating temperature -40° to 178° F (-40° to 81° C)
  • Paintable (preserves mechanical properties even after painting)
  • Non-adhesive surface for linear expansion of thermal insulation
Certification:

UL classified for USA (UL-723 (ASTM E 84)) and ULC listed for Canada (ULC-S102.2)

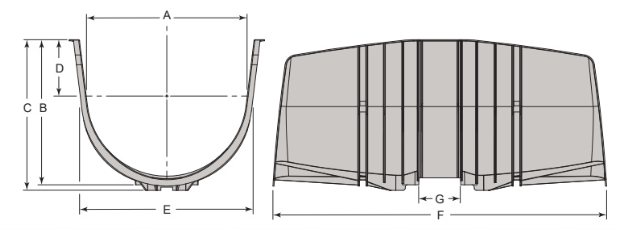

Dimensional Image
Installation

Tool-free, suited for horizontal pipe-installation

PART#
QTY
PRICE
No
$10.90
No
$15.50
No
$17.80
No
$23.20
No
$26.10
No
$33.00
No
$57.70
No
$66.00
Snap-A-Saddle Pro Multi™

Snap-A-Saddle Pro Multi™ Insulated Pipe Saddle - Overview

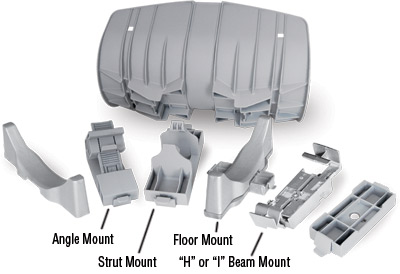

SAS-Multi-Kit

Snap-A-Saddle Pro Multi™ - Adaptable Insulated Pipe Saddle

Piping installations require different types of suspension systems, which vary in size.

Snap-A-Saddle Pro Multi™ design adapts to various sizes of strut, H-Beam, floor-mount, Clevis hangers & Steel angles. Thanks to the interchangeable bottom adapters, Snap-a-Saddle Pro Multi™ eliminates the hassle & headaches of compatibility problems you’ve been dealing with for so long!

Snap-a-Saddle Pro Multi™ makes the installer's job easier while standardizing piping installations and improving appearance. Whether you are looking at new or existing installations, the Snap-a-Saddle Pro Multi™ clip-on adapters will adapt to both the suspension system and the selected size of saddle core.

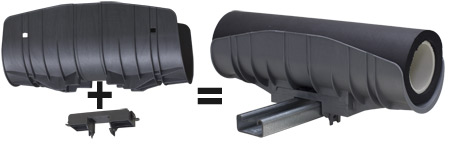

Strut-Build-example

(Basic Saddle) + (Adapter) = (Solution for Specific Install)

Snap-a-Saddle Pro Multi™ Features:

  • One Part Suits Multiple Applications - Simply change adapters
  • Fastest Installation In The Industry
    40% faster than metal or plastic shields
    80% faster than clamps and collars
  • Keeps Thermal Bridge Intact -
    Prevents insulation damage and compression
  • Tool-Free Installation
    One simple click is all it takes
  • Permanent solution to displacement and/or falling of pipe support
  • Maintains Liquid Line In Place - Eliminates refrigerant leaks
