    Snap-A-Saddle® Strut Mount Plastic Insulation Saddle
    Snap-A-Saddle® Strut Mount Plastic Insulation Saddle
    Description

    The Snap-A-Saddle® provides an easy way to attach insulated pipes to support channel, with one step, tool-free installation.

    Features
    • Temp Range: -50° to 275°F (-46° to 135° C)
    • Available in both black and white
    • UL94-HB1 Rated TPV Material
    • Made in USA
    • Easy Installation
    • Standard 12" (305mm) lengths. Special
    • lengths available upon request

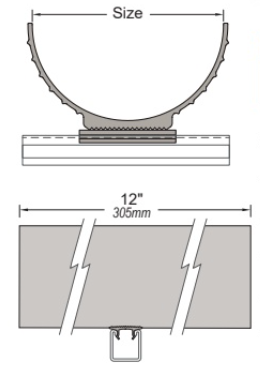

    Dimensional Image

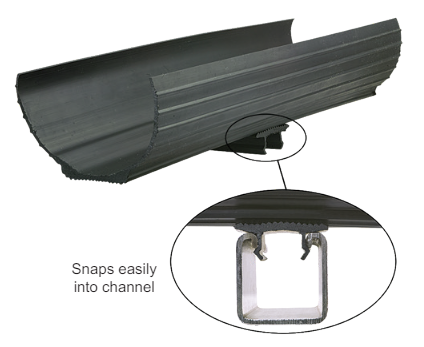

    Installation
    PART#
    Length
    Width
    QTY
    PRICE
    SB225
    12
    2-1/4"
    No
    $15.70
    SB325
    12
    3-1/4"
    No
    $18.70
    SB425
    12
    4-1/4"
    No
    $20.30
    SB525
    12
    5-1/4"
    No
    $25.60
    SB625
    12
    6-1/4"
    No
    $31.30
    SB825
    12
    8-1/4"
    No
    $41.40
    SW225
    12
    2-1/4"
    No
    $15.70
    SW325
    12
    3-1/4"
    No
    $18.70
    SW425
    12
    4-1/4"
    No
    $20.30
    SW525
    12
    5-1/4"
    No
    $25.60
    SW625
    12
    6-1/4"
    No
    $31.30
    SW825
    12
    8-1/4"
    No
    $41.40
    GRAND TOTAL: $0
    PART#
    QTY
    PRICE
    SB225
    No
    $15.70
    SB325
    No
    $18.70
    SB425
    No
    $20.30
    SB525
    No
    $25.60
    SB625
    No
    $31.30
    SB825
    No
    $41.40
    SW225
    No
    $15.70
    SW325
    No
    $18.70
    SW425
    No
    $20.30
    SW525
    No
    $25.60
    SW625
    No
    $31.30
    SW825
    No
    $41.40

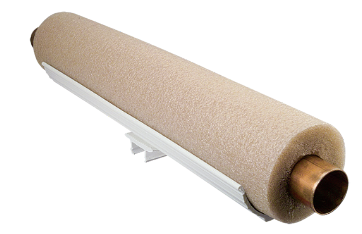

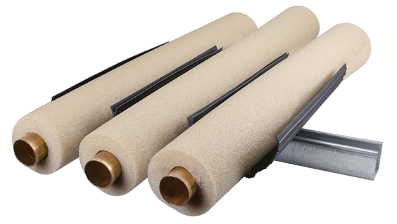

    Snap-A-Saddle Insulated Pipe Saddle

    Snap-A-Saddle Insulated Pipe Saddle

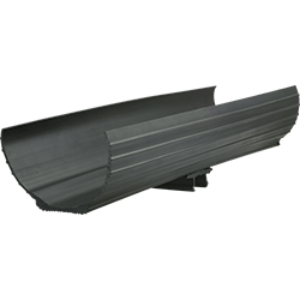

    Snap-A-Saddle

    Snap-A-Saddle Size Guide for Copper Tubing

    Tubing Insulation Thickness
    Size 1/2" 3/4" 1" 1 1/2" 2"
    1/4" S*225 S*225 S*325 S*425 S*525
    3/8" S*225 S*225 S*325 S*425 S*525
    1/2" S*225 S*225 S*325 S*425 S*525
    5/8" S*225 S*325 S*325 S*425 S*525
    3/4" S*225 S*325 S*325 S*425 S*525
    1" S*225 S*325 S*325 S*425 S*525
    1 1/4" S*325 S*325 S*425 S*525 S*625
    1 1/2" S*325 S*325 S*425 S*525 S*625
    2" S*325 S*425 S*425 S*525 S*625
    2 1/2" S*425 S*425 S*525 S*625 S*825
    3" S*425 S*525 S*525 S*625 S*825
    3 1/2" S*525 S*525 S*625 S*825 S*825
    4" S*525 S*625 S*625 S*825 S*825

    Snap-A-Saddle Size Guidefor Schedule 40/80 Pipe

    Pipe Insulation Thickness
    Size 1/2" 3/4" 1" 1 1/2" 2"
    1/4" S*225 S*225 S*325 S*425 S*525
    3/8" S*225 S*225 S*325 S*425 S*525
    1/2" S*225 S*325 S*325 S*425 S*525
    3/4" S*225 S*325 S*325 S*425 S*525
    1" S*325 S*325 S*425 S*525 S*625
    1 1/4" S*325 S*325 S*425 S*525 S*625
    1 1/2" S*325 S*425 S*425 S*525 S*625
    2" S*425 S*425 S*425 S*525 S*625
    2 1/2" S*425 S*525 S*525 S*625 S*825
    3" S*525 S*525 S*625 S*825 S*825
    3 1/2" S*525 S*625 S*625 S*825 S*825
    4" S*625 S*625 S*825 S*825 S*825
    *Add "B" for Black or "W" for White
    Snap-A-Saddle-end
    Easily Snaps into
    Metal Framing Channel

    SNAP-A-SADDLE™

    The SNAP-A-SADDLE™ provides an easy way to attach insulated pipes to support channel, with one step, tool-free installation. (Patent Pending)

    Features Include:

    • Temp Range: -50°F to 275°F (-46°C to 135°C)
    • Available in both black and white
    • UL94-HB1 Rated TPV Material
    • Made in USA
    • Easy Installation
    • Standard 12" lengths. Special lengths available upon request

    SnapASaddle_Dwg

    SideView
