W100 Channel 12 Gauge 1-5/8" x 2-7/16"
Description
W100 12 gauge 1 5/8" x 2 7/16" (41mm x 62mm) channel
- Available in 10', 20' & pre-cut lengths
- Available finishes: PG, HG, GR, PL, Gold, EA, ST304, & ST316.
Features

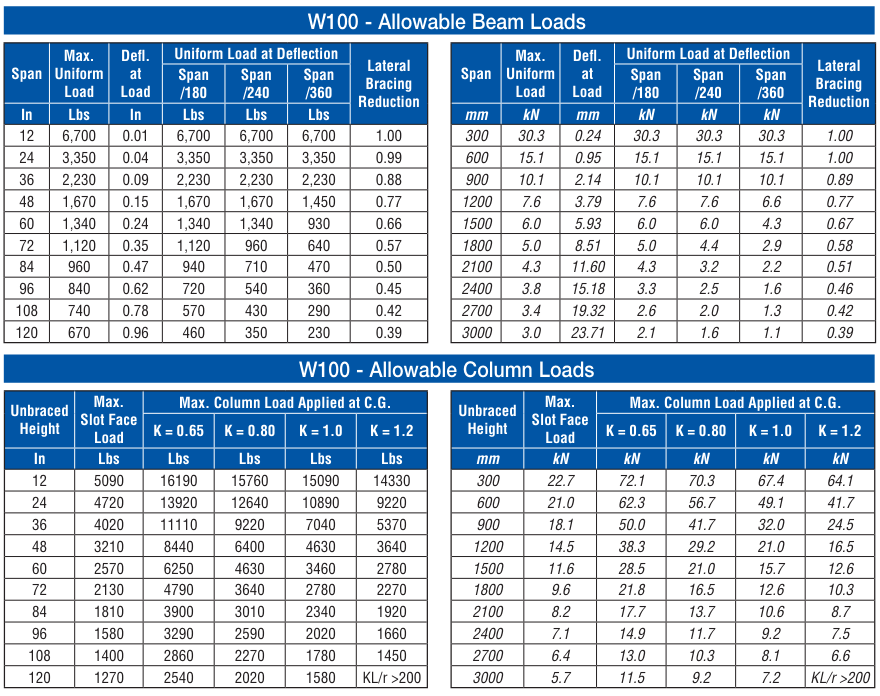

Beam loads shown are total uniform load, including the channel weight, for a simple span supported at each end that is adequately laterally braced. Refer to pages Engineering Catalog for other beam support conditions.

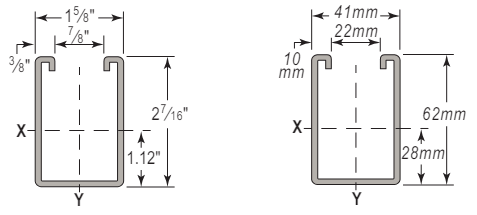

Dimensional Image
Specifications
