W101SS Channel w/ Short Slots 12 Gauge 1-5/8" x 2-7/16"
Description
W101SS 12 Gauge Channel 1 5/8" X 4 7/8" (41mm x 124mm) with 9/16" x 1 1/8" short slots on 2" centers.
- Available in 10'& 20' lengths
- Finishes: PG, HG, GR, PL, Gold, EA, ST304, & ST316
Features

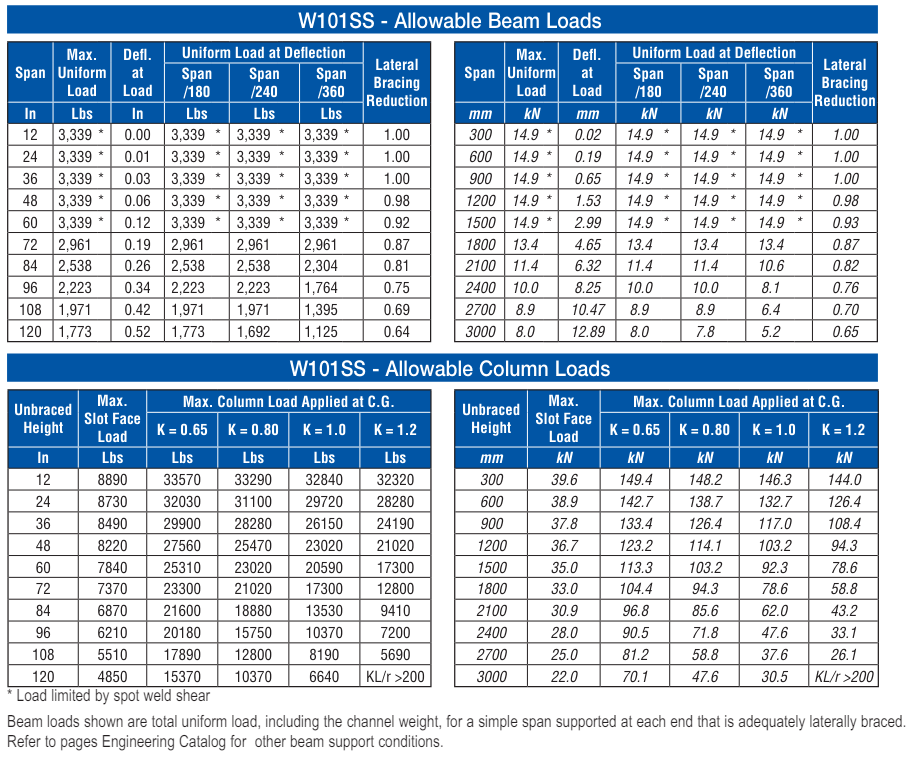

Beam loads shown are total uniform load, including the channel weight, for a simple span supported at each end that is adequately laterally braced. Refer to pages Engineering Catalog for other beam support conditions.
* Load limited by spot weld shear

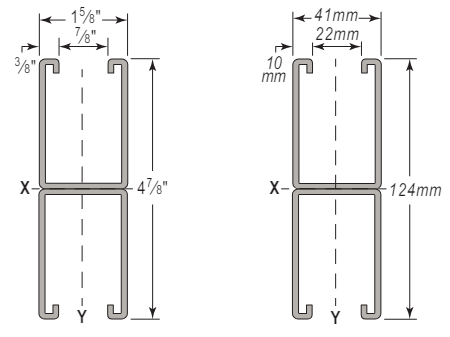

Dimensional Image
Specifications
