W200H Series Channel w/Holes 12 Gauge 1-5/8" x 1-5/8"
Description
W200H - 12 Gauge Channel 1 5⁄8" x 1 5⁄8" (41mm x 41mm) with 9⁄16" holes on 1 7⁄8" centers.
- Channel With Holes 9⁄16" holes are punched on 1-7⁄8" centers.
- Available in 10' 20' lengths
- Finishes: PG, HG, GR, PL, Gold, EA, ST304, & ST316
Features

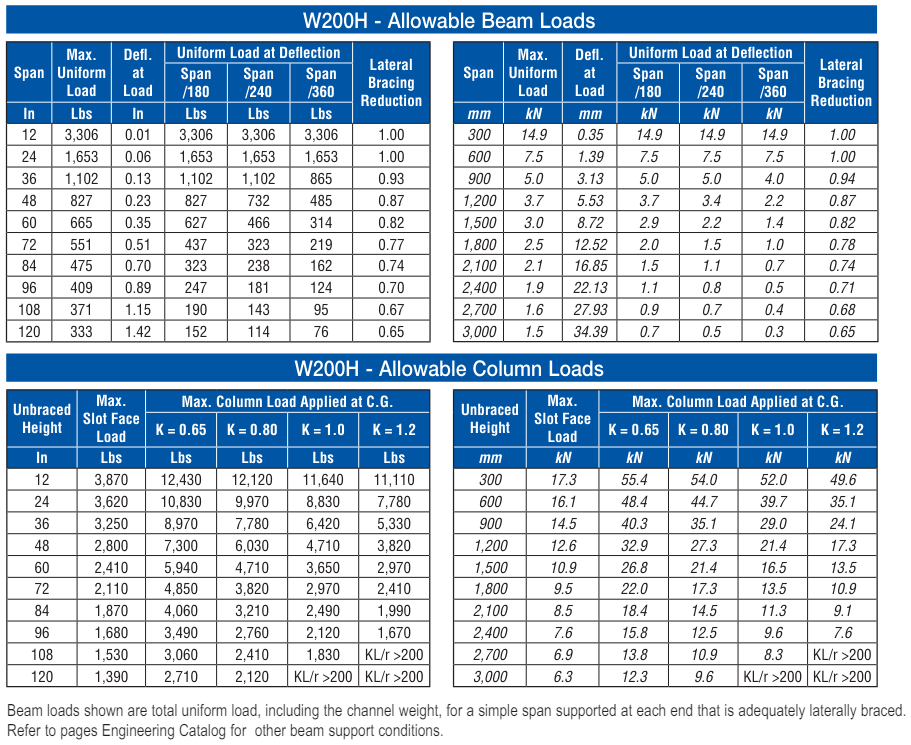

Beam loads shown are total uniform load, including the channel weight, for a simple span supported at each end that is adequately laterally braced. Refer to pages Engineering Catalog for other beam support conditions.

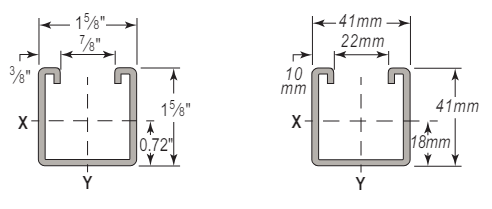

Dimensional Image
Specifications
