W301 Channel Combination 12 Gauge 1-5/8" x 2-3/4"
Description
W301 - 12 Gauge Channel 1 5⁄8" x 2 3⁄4" (41mm x 70mm)
- Available in 10' & 20' lengths
- Finishes: PG, HG, GR, PL, Gold, EA, ST304, & ST316
Features

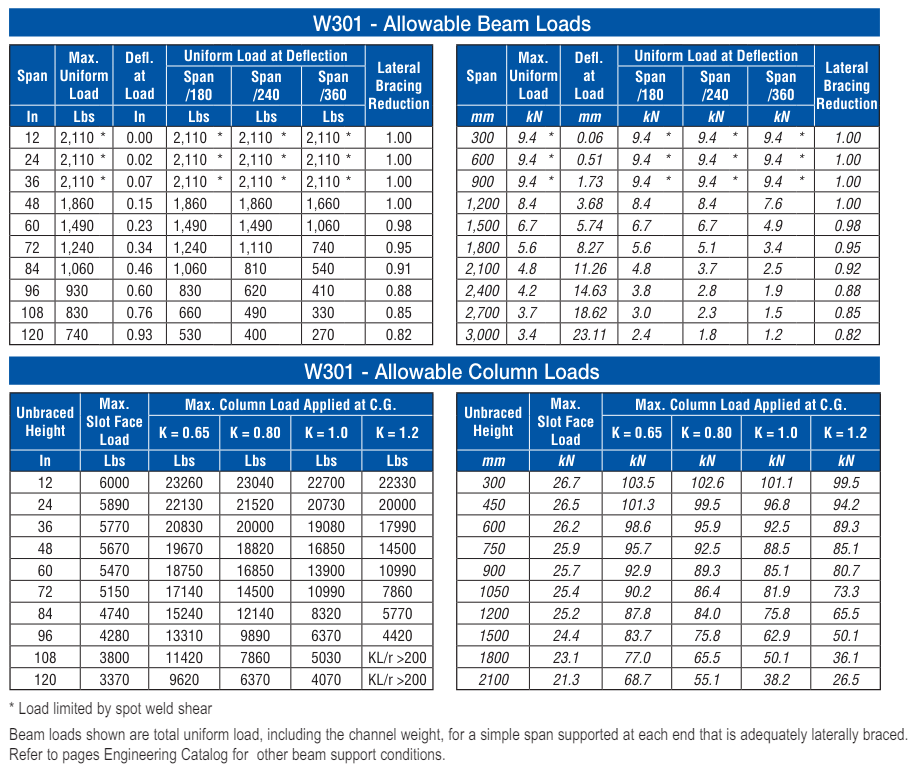

Beam loads shown are total uniform load, including the channel weight, for a simple span supported at each end that is adequately laterally braced. Refer to pages Engineering Catalog for other beam support conditions.

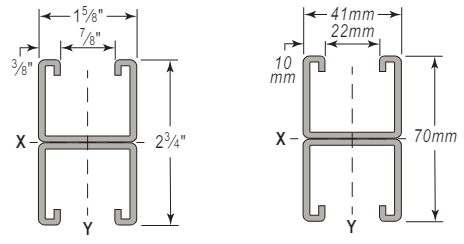

Dimensional Image
Specifications
