    Spring Steel FHS C Flange Clip Side Mount with Conduit Clip
    Spring Steel FHS C Flange Clip Side Mount with Conduit Clip
    Description

    The Spring SteelFHS C Flange Clip Side Mount with Conduit Clip supports pipe and conduit from beam flanges.

    Features
    • Supports pipe and conduit from beam flanges
    • Flange thickness range stamped on part
    • Only a hammer required for installation
    • Material: Spring Steel
    • Finish: Silva-Guard

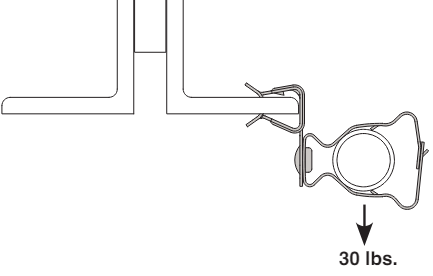

    Installation
    PART#
    Box Qty
    Conduit Size
    Min. Max. Flange Thickness
    QTY
    PRICE
    FHS24CC812
    50
    1 ⁄ 2" & 3 ⁄4" EMT, Rigid
    1 ⁄ 8" - 1 ⁄4" (3mm - 6mm)
    No
    $2.70
    FHS58CC812
    50
    1⁄ 2" & 3 ⁄4" EMT, Rigid
    5 ⁄16" - 1 ⁄ 2" (8mm - 13mm)
    No
    $3.00
    FHS912CC812
    50
    1 ⁄ 2" & 3 ⁄4" EMT, Rigid
    9 ⁄16" - 3 ⁄4" (14mm - 19mm)
    No
    $3.80
    FHS24CC16
    50
    1" EMT, Rigid
    1 ⁄ 8" - 1 ⁄4" (3mm - 6mm)
    No
    $3.10
    FHS58CC16
    50
    1" EMT, Rigid
    5 ⁄16" - 1 ⁄ 2" (8mm - 13mm)
    No
    $3.20
    FHS912CC16
    50
    1" EMT, Rigid
    9 ⁄16" - 3 ⁄4" (14mm - 19mm)
    No
    $4.20
    FHS24CC20
    50
    1-1 ⁄4" EMT, Rigid
    1 ⁄ 8" - 1 ⁄4" (3mm - 6mm)
    No
    $4.00
    FHS58CC20
    50
    1-1 ⁄4" EMT, Rigid
    5 ⁄16" - 1 ⁄ 2" (8mm - 13mm)
    No
    $4.00
    FHS912CC20
    25
    1-1 ⁄4" EMT, Rigid
    9 ⁄16" - 3 ⁄4" (14mm - 19mm)
    No
    $4.50
    FHS24CC24
    50
    1-1 ⁄ 2" EMT, Rigid
    ⁄ 8" - 1 ⁄4" (3mm - 6mm)
    No
    $4.20
    FHS58CC24
    50
    1-1 ⁄ 2" EMT, Rigid
    5 ⁄16" - 1 ⁄ 2" (8mm - 13mm)
    No
    $4.20
    FHS912CC24
    25
    1-1 ⁄ 2" EMT, Rigid
    9 ⁄16" - 3 ⁄4" (14mm - 19mm)
    No
    $4.60
    FHS24CC32
    25
    2" EMT, Rigid
    1 ⁄ 8" - 1 ⁄4" (3mm - 6mm)
    No
    $4.40
    FHS58CC32
    25
    2" EMT, Rigid
    5 ⁄16" - 1 ⁄ 2" (8mm - 13mm)
    No
    $4.30
    FHS912CC32
    25
    2" EMT, Rigid
    9 ⁄16" - 3 ⁄4" (14mm - 19mm)
    No
    $4.70
