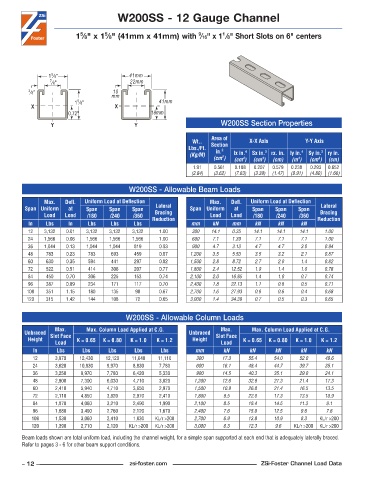

Page 12 - ZSi-Foster Channel Loads
P. 12

W200SS - 12 Gauge Channel


                                                                          1
                                   5
                                                                  9
                           5
                          1 ⁄8" x 1 ⁄8" (41mm x 41mm) with  ⁄16" x 1 ⁄8" Short Slots on 6" centers



                  5
                 1 ⁄8"                     41mm
                 7 ⁄8"                     22mm
          3 ⁄8"                       10
                                     mm
                          5
                         1 ⁄8"                       41mm
           X                           X
                       0.72"                      18mm
                  Y                          Y                           W200SS Section Properties

                                                                      Area of
                                                                Wt..              X-X Axis           Y-Y Axis
                                                               Lbs./Ft.   Section
                                                                       in.
                                                                         2
                                                               (Kg/M)        lx in. 4   Sx in. 3  rx. in. ly in. 4  Sy in. 3  ry in.
                                                                         2
                                                                       (cm )  (cm )  (cm )  (cm)  (m )  (cm )  (cm)
                                                                                       3
                                                                                4
                                                                                                         3
                                                                                                  4
                                                                1 .91  0 .561  0 .188  0 .207  0 .579  0 .238  0 .293  0 .652
                                                               (2.84)  (3.62)  (7.83)  (3.39)  (1.47)  (9.91)  (4.80)  (1.66)
                                           W200SS - Allowable Beam Loads
               Max.    Defl.   Uniform Load at Deflection             Max.    Defl.   Uniform Load at Deflection
         Span Uniform   at   Span    Span   Span    Lateral    Span Uniform   at   Span    Span   Span    Lateral
               Load   Load   /180    /240   /360    Bracing           Load  Load    /180   /240    /360   Bracing
          In    Lbs    In     Lbs    Lbs     Lbs   Reduction   mm     kN     mm     kN      kN     kN    Reduction
          12   3,132   0 .01  3,132  3,132  3,132    1 .00      300   14.1   0.35   14.1   14.1    14.1    1.00
          24   1,566   0 .06  1,566  1,566  1,566    1 .00      600   7.1    1.39   7.1     7.1    7.1     1.00
          36   1,044   0 .13  1,044  1,044   819     0 .93      900   4.7    3.13   4.7     4.7    3.8     0.94
          48    783    0 .23  783    693     459     0 .87     1,200  3.5    5.53   3.5     3.2    2.1     0.87
          60    630    0 .35  594    441     297     0 .82     1,500  2.8    8.72   2.7     2.0    1.4     0.82
          72    522    0 .51  414    306     207     0 .77     1,800  2.4   12.52   1.9     1.4    1.0     0.78
          84    450    0 .70  306    225     153     0 .74     2,100  2.0   16.85   1.4     1.0    0.7     0.74
          96    387    0 .89  234    171     117     0 .70     2,400  1.8   22.13   1.1     0.8    0.5     0.71
          108   351    1 .15  180    135     90      0 .67     2,700  1.6   27.93   0.8     0.6    0.4     0.68
          120   315    1 .42  144    108     72      0 .65     3,000  1.4   34.39   0.7     0.5    0.3     0.65


                                          W200SS - Allowable Column Loads
                   Max.      Max. Column Load Applied at C.G.            Max.      Max. Column Load Applied at C.G.
         Unbraced  Slot Face                                   Unbraced  Slot Face
          Height          K = 0.65  K = 0.80  K = 1.0  K = 1.2  Height          K = 0.65  K = 0.80  K = 1.0  K = 1.2
                   Load                                                  Load
            In      Lbs     Lbs     Lbs      Lbs     Lbs         mm       kN       kN      kN      kN       kN
            12     3,870   12,430   12,120  11,640   11,110      300      17.3    55.4    54.0     52.0    49.6
            24     3,620   10,830   9,970   8,830    7,780       600      16.1    48.4    44.7     39.7    35.1
            36     3,250   8,970    7,780   6,420    5,330       900      14.5    40.3    35.1     29.0    24.1
            48     2,800   7,300    6,030   4,710    3,820      1,200     12.6    32.9    27.3     21.4    17.3
            60     2,410   5,940    4,710   3,650    2,970      1,500     10.9    26.8    21.4     16.5    13.5
            72     2,110   4,850    3,820   2,970    2,410      1,800     9.5     22.0    17.3     13.5    10.9
            84     1,870   4,060    3,210   2,490    1,990      2,100     8.5     18.4    14.5     11.3    9.1
            96     1,680   3,490    2,760   2,120    1,670      2,400     7.6     15.8    12.5     9.6     7.6
           108     1,530   3,060    2,410   1,830   KL/r >200   2,700     6.9     13.8    10.9     8.3   KL/r >200
           120     1,390   2,710    2,120  KL/r >200  KL/r >200  3,000    6.3     12.3     9.6   KL/r >200  KL/r >200
        Beam loads shown are total uniform load, including the channel weight, for a simple span supported at each end that is adequately laterally braced.
        Refer to pages 3 - 6 for other beam support conditions.
