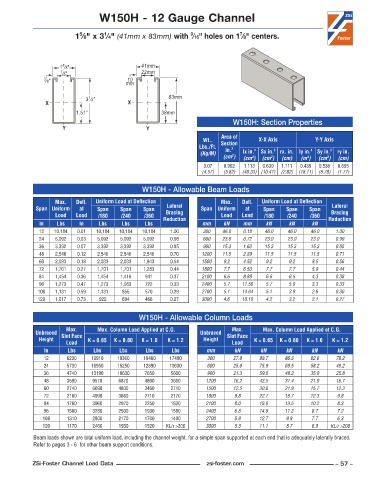

Page 57 - ZSi-Foster Channel Loads
P. 57

W150H - 12 Gauge Channel


                                                               9
                                                                               7
                           5
                                   1
                          1 ⁄8" x 3 ⁄4" (41mm x 83mm) with  ⁄16" holes on 1 ⁄8" centers.

                     5
                     1 ⁄8"                     41mm
                     7 ⁄8"                     22mm
               3 ⁄8"                      mm
                                           10

                              1
                             3 ⁄4"                      83mm
                X                          X
                          1.51"                       38mm
                                                                             W150H: Section Properties
                     Y                           Y
                                                                         Area of
                                                                   Wt..   Section    X-X Axis           Y-Y Axis
                                                                  Lbs./Ft.   in. 2
                                                                  (Kg/M)        lx in. 4   Sx in. 3  rx. in. ly in. 4  Sy in. 3  ry in.
                                                                             2
                                                                          (cm )  (cm )  (cm )  (cm)  (m )  (cm )  (cm)
                                                                                                            3
                                                                                   4
                                                                                         3
                                                                                                     4
                                                                    3 .07  0 .902  1 .113  0 .639  1 .111  0 .435  0 .536  0 .695
                                                                   (4.57)  (5.82)  (46.33) (10.47)  (2.82)  (18.11)  (8.78)  (1.77)
                                               W150H - Allowable Beam Loads
                   Max.    Defl.   Uniform Load at Deflection            Max.    Defl.   Uniform Load at Deflection
             Span Uniform   at   Span   Span    Span   Lateral     Span Uniform   at   Span   Span    Span   Lateral
                   Load   Load   /180    /240   /360   Bracing           Load   Load   /180    /240   /360   Bracing
              In    Lbs    In    Lbs     Lbs    Lbs   Reduction    mm     kN    mm      kN     kN      kN   Reduction
              12   10,184  0 .01  10,184  10,184  10,184  1 .00    300    46.0  0.18   46.0    46.0   46.0     1.00
              24   5,092  0 .03  5,092  5,092   5,092    0 .98     600    23.0  0.72   23.0    23.0   23.0     0.99
              36   3,392  0 .07  3,392  3,392   3,392    0 .85     900    15.3  1.63   15.3    15.3   15.3     0.85
              48   2,546  0 .12  2,546  2,546   2,546    0 .70     1200   11.5  2.89   11.5    11.5   11.5     0.71
              60   2,033  0 .18  2,033  2,033   1,843    0 .54     1500   9.2   4.52    9.2    9.2     8.5     0.56
              72   1,701  0 .27  1,701  1,701   1,283    0 .44     1800   7.7   6.53    7.7    7.7     5.9     0.44
              84   1,454  0 .36  1,454  1,416   941      0 .37     2100   6.6   8.88    6.6    6.5     4.3     0.38
              96   1,273  0 .47  1,273  1,083   722      0 .33     2400   5.7   11.56   5.7    5.0     3.3     0.33
             108   1,131  0 .59  1,131   855    570      0 .29     2700   5.1   14.64   5.1    3.9     2.6     0.30
             120   1,017  0 .73  922     694    466      0 .27     3000   4.6   18.10   4.2    3.2     2.1     0.27


                                              W150H - Allowable Column Loads
                       Max.      Max. Column Load Applied at C.G.            Max.      Max. Column Load Applied at C.G.
             Unbraced  Slot Face                                  Unbraced  Slot Face
              Height          K = 0.65  K = 0.80  K = 1.0  K = 1.2  Height          K = 0.65  K = 0.80  K = 1.0  K = 1.2
                       Load                                                  Load
               In      Lbs      Lbs     Lbs      Lbs     Lbs        mm        kN      kN      kN       kN      kN
               12      6230    19910   19360    18480   17490        300     27.8     88.7    86.3    82.6     78.2
               24      5730    16950   15250    12890   10630        600     25.6     75.9    68.5    58.2     48.2
               36      4740    13190   10630    7650     5660        900     21.3     59.5    48.2    35.0     25.8
               48      3590    9570     6870    4800     3660       1200     16.2     43.5    31.4    21.9     16.7
               60      2740    6690     4800    3460     2710       1500     12.5     30.6    21.9    15.7     12.3
               72      2160    4990     3660    2710     2170       1800      9.8     22.7    16.7    12.3     9.8
               84      1760    3960     2970    2250     1830       2100      8.0     18.0    13.5    10.2     8.3
               96      1500    3280     2500    1930     1580       2400      6.8     14.9    11.3     8.7     7.2
               108     1310    2800     2170    1700     1400       2700      5.9     12.7    9.8      7.7     6.3
               120     1170    2460     1930    1520   KL/r >200    3000      5.3     11.1    8.7      6.9   KL/r >200
            Beam loads shown are total uniform load, including the channel weight, for a simple span supported at each end that is adequately laterally braced.
            Refer to pages 3 - 6  for other beam support conditions.


            ZSi-Foster Channel Load Data                            zsi-foster.com                             – 57 –
