W500 Series Channel 14 Gauge 1-5/8" x 13/16"
W500 Series Channel 14 Gauge 1-5/8" x 13/16"
Description

W500 - 14 Gauge Channel 1 5⁄8" x 13⁄16" (41mm x 21mm)

  • Available in 10' & 20' and pre-cut lengths
  • Finishes: PG, HG, GR, PL, Gold, EA, ST304, & ST316
Features

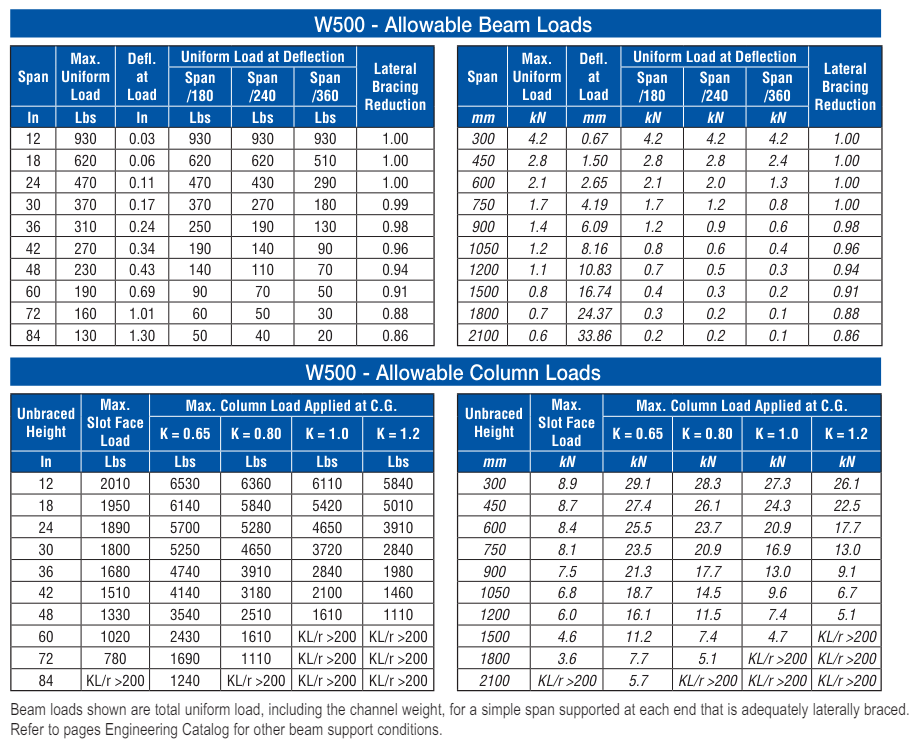

Beam loads shown are total uniform load, including the channel weight, for a simple span supported at each end that is adequately laterally braced. Refer to pages Engineering Catalog for other beam support conditions.

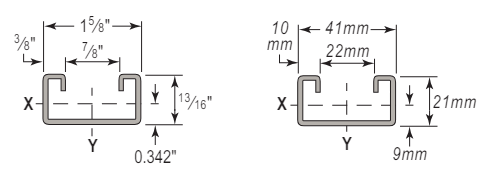

Dimensional Image
Specifications
