W800 Channel 12 Gauge 1-5/8" x 1"
W800 Channel 12 Gauge 1-5/8" x 1"
Description

W800 Channel 12 Gauge 1-5/8" x 1" (41mm x 25mm)

Standard Finish: pre-galvanized (PG)

NOTE: if you do not find the finish, length, or hole-pattern required for your project, please contact us for a price quote and lead time.

Available in:
  • 10' & 20' standard lengths
  • pre-cut lengths
  • custom cut lengths
  • combinations
  • pierced channel
Materials:
  • Hot Rolled & Cold Rolled Steel (use finish code)
  • Stainless Steel 304 (ST304)
  • Stainless Steel 316 (ST316)
  • Aluminum (AL)
Finishes:
  • Pre-Galvanized (PG)
  • Paint-Green Powder Coating (GR)
  • Electroplated Zinc (EG)
  • Hot Dip Galvanized After Fabrication (HG)
  • Plain Coatings
  • Special Coatings (PL, GOLD)

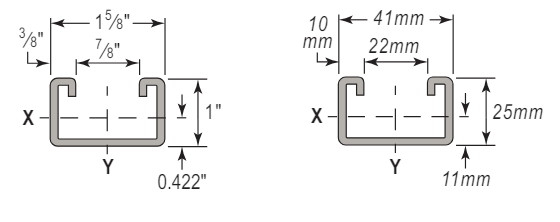

Dimensional Image
Allowable Beam Loads

Beam loads shown are total uniform load, including the channel weight, for a simple span supported at each end that is adequately laterally braced.

Span
In(mm)
Max. Uniform Load (W)
Lbs (kN)
Deflection at Load (W)
In (mm)
Uniform Load at Deflection Span /240
Lbs (kN)
Lateral Bracing Load Reduction Rate
12 (305) 1,560 (6.9) 0.02 (0.5) 1,560 (6.9) 1.00
24 (610) 1,040 (4.6) 0.05 (1.3) 1,040 (4.6) 1.00
36 (914) 780 (3.5) 0.09 (2.3) 780 (3.5) 1.00
48 (1,219) 630 (2.8) 0.14 (3.6) 570 (2.5) 1.00
60 (1,524) 520 (2.3) 0.20 (5.1) 390 (1.7) 1.00
72 (1,829) 450 (2.0) 0.27 (6.9) 290 (1.3) 0.97
84 (2,134) 390 (1.7) 0.35 (8.9) 220 (1.0) 0.94
96 (2,438) 310 (1.4) 0.55 (14.0) 140 (0.6) 0.91
108 (2,743) 260 (1.2) 0.79 (20.1) 100 (0.4) 0.89
120 (3,048) 220 (1.0) 1.07 (27.2) 70 (0.3) 0.86
Allowable Column Loads
Unbraced Height
In (mm)
Max. Slot Face Load
Lbs (kN)
Max. Column Load Applied at C.G.
K=1.0
Lbs (kN)
12 (305) 2,220 (9.9) 9,350 (41.6)
24 (610) 2,190 (9.7) 8,580 (38.2)
36 (914) 2,150 (9.6) 7,600 (33.8)
48 (1,219) 2,090 (9.3) 6,500 (28.9)
60 (1,524) 2,020 (9.0) 5,370 (23.9)
72 (1,829) 1,930 (8.6) 4,290 (19.1)
84 (2,134) 1,820 (8.1) 3,320 (14.8)
96 (2,438) 1,540 (6.9) 2,120 (9.4)
108 (2,743) 1,280 (5.7) KL ⁄ r > 200
120 (3,048) 1,060 (4.7) KL ⁄ r > 200
Section Properties
Wt./Ft.
Lbs. (Kg/M)

1.46 (2.17)
Area of Section
Sq. in.
(Sq. cm)

0.43 (2.77)
X-X Axis
lx in.4
(lx cm4)

0.054 (2.25)
X-X Axis
Sx in.3
(Sx cm3)

0.093 (1.52)
X-X Axis
rx. in.
(rx. cm)

0.354 (0.90)
Y-Y Axis
ly in.4
(ly cm4)

0.163 (6.78)
Y-Y Axis
Sy in.3
(Sy cm3)

0.200 (3.28)
Y-Y Axis
ry in.
(ry cm)

0.615 (1.56)
