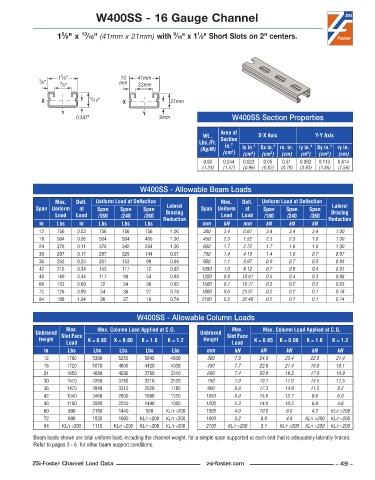

W400SS - 16 Gauge Channel


                            13
                     5
                                                                 1
                                                          9
                    1 ⁄8" x  ⁄16" (41mm x 21mm) with  ⁄16" x 1 ⁄8" Short Slots on 2" centers.



                     5
                    1 ⁄8"               10    41mm
              3 ⁄8"  7 ⁄8"              mm    22mm

               X              13 ⁄16"    X               21mm
                     Y                          Y
                          0.347"                     9mm                     W400SS Section Properties

                                                                         Area of
                                                                   Wt..   Section    X-X Axis           Y-Y Axis
                                                                  Lbs./Ft.   in. 2
                                                                  (Kg/M)        lx in. 4   Sx in. 3  rx. in. ly in. 4  Sy in. 3  ry in.
                                                                             2
                                                                          (cm )  (cm )  (cm )  (cm)  (m )  (cm )  (cm)
                                                                                         3
                                                                                   4
                                                                                                            3
                                                                                                     4
                                                                   0 .83  0 .244  0 .023  0 .05  0 .31  0 .092  0 .113  0 .614
                                                                   (1.24)  (1.57)  (0.96)  (0.82)  (0.79)  (3.83)  (1.85)  (1.56)
                                               W400SS - Allowable Beam Loads
                   Max.    Defl.   Uniform Load at Deflection            Max.    Defl.   Uniform Load at Deflection
             Span Uniform   at   Span   Span    Span   Lateral     Span Uniform   at   Span   Span    Span   Lateral
                   Load   Load   /180    /240   /360   Bracing           Load   Load   /180    /240   /360   Bracing
              In    Lbs    In    Lbs     Lbs    Lbs   Reduction    mm     kN    mm      kN     kN      kN   Reduction
              12    756   0 .03  756     756    756      1 .00     300    3.4   0.67    3.4    3.4     3.4     1.00
              18    504   0 .06  504     504    405      1 .00     450    2.3   1.52    2.3    2.3     1.9     1.00
              24    378   0 .11  378     342    234      1 .00     600    1.7   2.72    1.7    1.6     1.0     1.00
              30    297   0 .17  297     225    144      0 .97     750    1.4   4.19    1.4    1.0     0.7     0.97
              36    252   0 .25  207     153     99      0 .94     900    1.1   5.97    0.9    0.7     0.5     0.94
              42    216   0 .34  153     117     72      0 .92     1050   1.0   8.12    0.7    0.5     0.4     0.91
              48    189   0 .44  117     90      54      0 .88     1200   0.8   10.61   0.5    0.4     0.3     0.88
              60    153   0 .69   72     54      36      0 .82     1500   0.7   16.77   0.3    0.2     0.2     0.83
              72    126   0 .99   54     36      27      0 .78     1800   0.6   23.87   0.2    0.2     0.1     0.78
              84    108   1 .34   36     27      18      0 .74     2100   0.5   32.49   0.2    0.1     0.1     0.74


                                              W400SS - Allowable Column Loads
                       Max.      Max. Column Load Applied at C.G.            Max.      Max. Column Load Applied at C.G.
             Unbraced  Slot Face                                  Unbraced  Slot Face
              Height          K = 0.65  K = 0.80  K = 1.0  K = 1.2  Height          K = 0.65  K = 0.80  K = 1.0  K = 1.2
                       Load                                                  Load
               In      Lbs      Lbs     Lbs      Lbs     Lbs        mm        kN      kN      kN       kN      kN
               12      1780    5390     5250    5040     4800        300      7.9     24.0    23.4    22.5     21.4
               18      1720    5070     4800    4420     4030        450      7.7     22.6    21.4    19.8     18.1
               24      1650    4680     4290    3780     3310        600      7.4     20.9    19.2    17.0     14.9
               30      1570    4260     3780    3210     2520        750      7.0     19.1    17.0    14.5     11.5
               36      1470    3840     3310    2520     1780        900      6.6     17.3    14.9    11.5     8.2
               42      1340    3460     2800    1880     1310       1050      6.0     15.6    12.7     8.6     6.0
               48      1180    3080     2250    1440     1000       1200      5.3     14.0    10.3     6.6     4.6
               60      890     2180     1440     920   KL/r >200    1500      4.0     10.0    6.6      4.2   KL/r >200
               72      690     1520     1000   KL/r >200  KL/r >200  1800     3.2     6.9     4.6    KL/r >200  KL/r >200
               84    KL/r >200  1110  KL/r >200  KL/r >200  KL/r >200  2100  KL/r >200  5.1  KL/r >200  KL/r >200  KL/r >200
            Beam loads shown are total uniform load, including the channel weight, for a simple span supported at each end that is adequately laterally braced.
