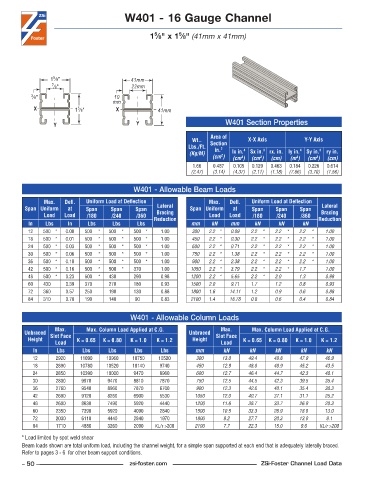

Page 50 - ZSi-Foster Channel Loads
P. 50

W401 - 16 Gauge Channel


                                                   5
                                                           5
                                                  1 ⁄8" x 1 ⁄8" (41mm x 41mm)





                  5
                  1 ⁄8"                     41mm
                  7 ⁄8"                     22mm
           3 ⁄8"                      10
                                      mm
            X             1 ⁄8"        X             41mm
                          5
                   Y                          Y                            W401 Section Properties
                                                                      Area of
                                                                Wt..   Section    X-X Axis          Y-Y Axis
                                                              Lbs./Ft.   in. 2
                                                               (Kg/M)        lx in. 4   Sx in. 3  rx. in. ly in. 4  Sy in. 3  ry in.
                                                                      (cm )  (cm )  (cm )  (cm)  (m )  (cm )  (cm)
                                                                         2
                                                                                      3
                                                                                4
                                                                                                  4
                                                                                                        3
                                                                1 .66  0 .487  0 .105  0 .129  0 .463  0 .184  0 .226  0 .614
                                                               (2.47)  (3.14)  (4.37)  (2.11)  (1.18)  (7.66)  (3.70)  (1.56)
                                             W401 - Allowable Beam Loads
               Max.    Defl.   Uniform Load at Deflection            Max.    Defl.   Uniform Load at Deflection
         Span Uniform   at   Span    Span    Span   Lateral    Span Uniform   at   Span    Span    Span   Lateral
               Load   Load   /180    /240    /360   Bracing          Load   Load   /180    /240    /360   Bracing
          In    Lbs    In     Lbs     Lbs     Lbs  Reduction   mm     kN    mm      kN      kN      kN   Reduction
          12   500 *  0 .00  500  *  500  *  500 *    1 .00     300  2.2 *  0.09   2.2  *  2.2  *  2.2  *  1.00
          18   500 *  0 .01  500  *  500  *  500 *    1 .00     450  2.2 *  0.30   2.2  *  2.2  *  2.2  *  1.00
          24   500 *  0 .03  500  *  500  *  500 *    1 .00     600  2.2 *  0.71   2.2  *  2.2  *  2.2  *  1.00
          30   500 *  0 .06  500  *  500  *  500 *    1 .00     750  2.2 *  1.38   2.2  *  2.2  *  2.2  *  1.00
          36   500 *  0 .10  500  *  500  *  500 *    1 .00     900  2.2 *  2.38   2.2  *  2.2  *  2.2  *  1.00
          42   500 *  0 .16  500  *  500  *  370      1 .00    1050  2.2 *  3.79   2.2  *  2.2  *  1.7     1.00
          48   500 *  0 .23  500  *  430     290      0 .98    1200  2.2 *  5.65   2.2  *  2.0     1.3     0.98
          60   430    0 .39  370     270     180      0 .93    1500  2.0    9.71   1.7     1.2     0.8     0.93
          72   360    0 .57  250     190     130      0 .88    1800  1.6    14.11  1.2     0.9     0.6     0.88
          84   310    0 .78  190     140     90       0 .83    2100  1.4    18.78  0.8     0.6     0.4     0.84


                                            W401 - Allowable Column Loads
                   Max.      Max. Column Load Applied at C.G.            Max.      Max. Column Load Applied at C.G.
         Unbraced  Slot Face                                   Unbraced  Slot Face
          Height          K = 0.65  K = 0.80  K = 1.0  K = 1.2  Height          K = 0.65  K = 0.80  K = 1.0  K = 1.2
                   Load                                                  Load
            In      Lbs     Lbs     Lbs      Lbs     Lbs         mm       kN       kN      kN      kN       kN
            12     2920    11090    10960   10750    10520       300      13.0    49.4    48.8     47.9    46.9
            18     2890    10780    10520   10140    9740        450      12.9    48.0    46.9     45.2    43.5
            24     2850    10390    10000    9470    8960        600      12.7    46.4    44.7     42.3    40.1
            30     2800     9970    9470     8810    7870        750      12.5    44.5    42.3     39.5    35.4
            36     2760     9540    8960     7870    6700        900      12.3    42.6    40.1     35.4    30.3
            42     2690     9120    8260     6900    5530        1050     12.0    40.7    37.1     31.1    25.2
            48     2600     8630    7490     5920    4440        1200     11.6    38.7    33.7     26.9    20.3
            60     2350     7390    5920     4090    2840        1500     10.5    33.3    26.9     18.8    13.0
            72     2030     6110    4440     2840    1970        1800     9.2     27.7    20.3     13.0    9.1
            84     1710     4880    3260     2090   KL/r >200    2100     7.7     22.3    15.0     9.6   KL/r >200
        * Load limited by spot weld shear
        Beam loads shown are total uniform load, including the channel weight, for a simple span supported at each end that is adequately laterally braced.
        Refer to pages 3 - 6  for other beam support conditions.
